Use CAS 2.0 authentication

1

Enable and configure CAS identity source

Enable and configure CAS identity source in the GenAuth console
2

Initiate CAS 2.0 authentication

Guide users to click the login link to initiate CAS 2.0 authentication
3

Jump to GenAuth for authentication

Users authenticate on the login page provided by GenAuth
4

Verify the validity of the Ticket

Verify the Ticket at the callback address Legitimacy and obtaining user identity information
Enable and configure CAS identity source

In order to use the CAS 2.0 protocol for authentication, you first need to enable the CAS identity source function in the GenAuth console and configure the callback address.

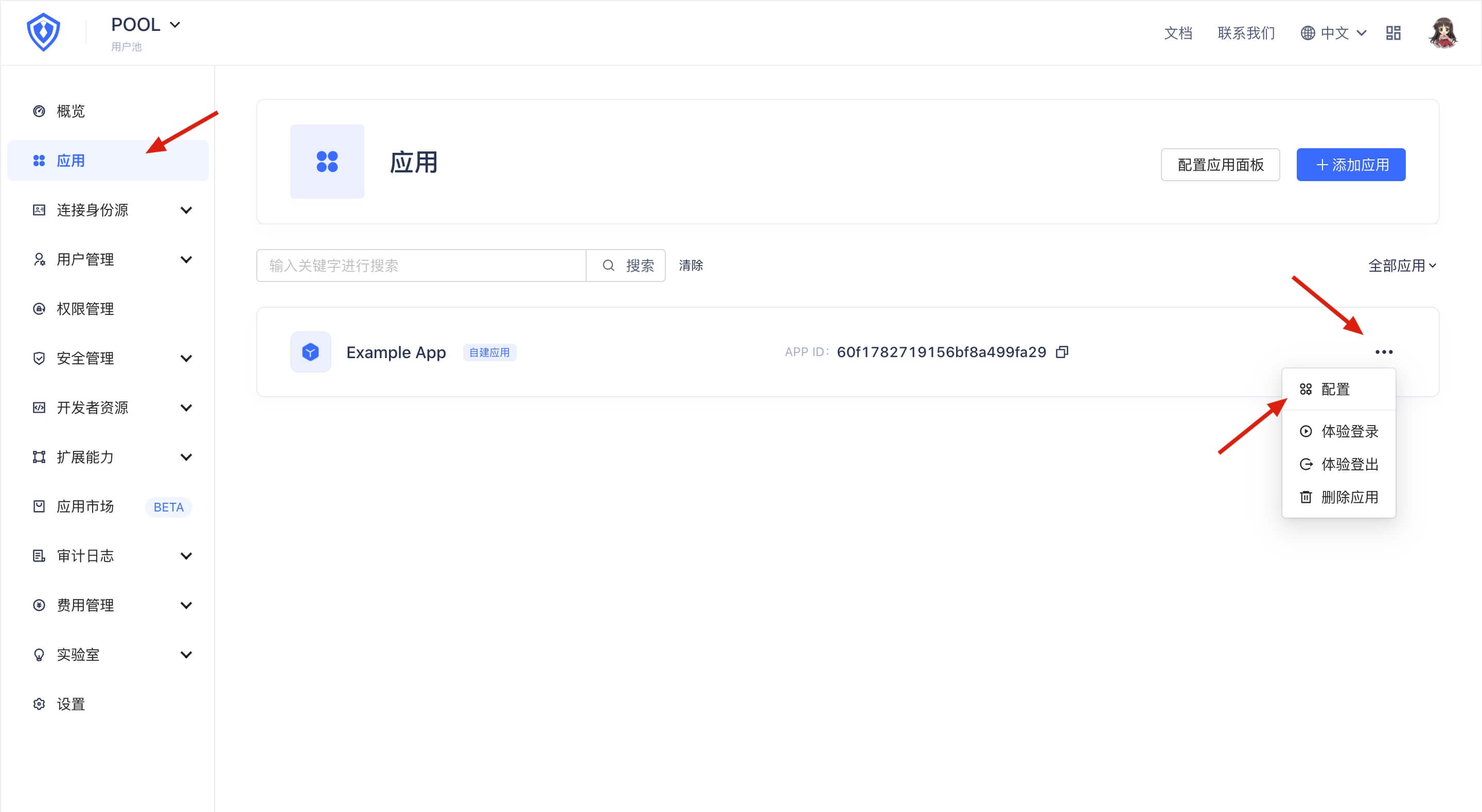

First open the GenAuth console and enter the user pool configuration page. Open the application panel, find the application you want to connect, and enter the application configuration page:

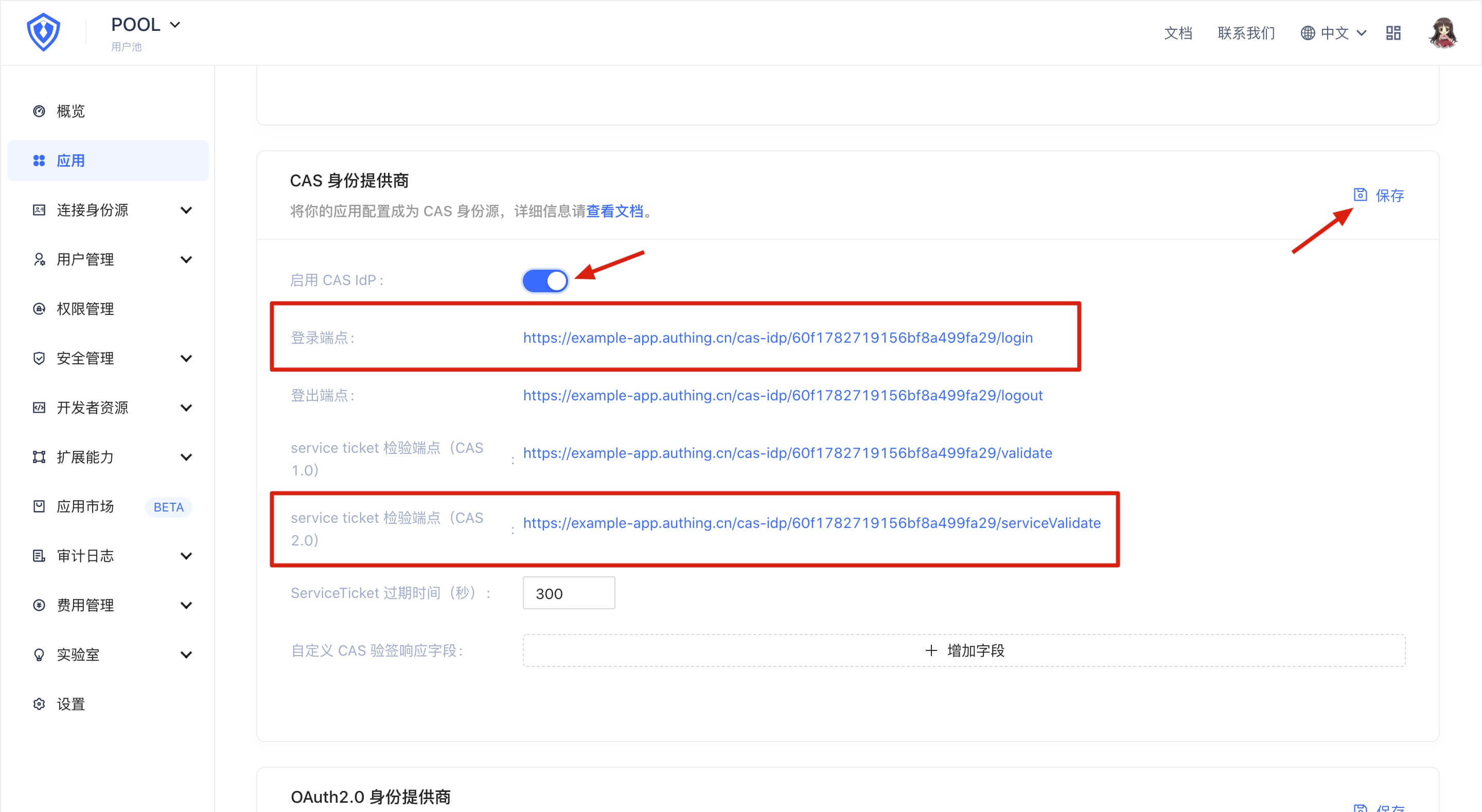

In the "Application Configuration" tab, find the "CAS Identity Provider" panel, turn on the "Enable CAS IdP" switch, and click the "Save" button. Record the contents of the "Login endpoint" and "Service ticket verification endpoint (CAS 2.0)", which will be used in the subsequent configuration.

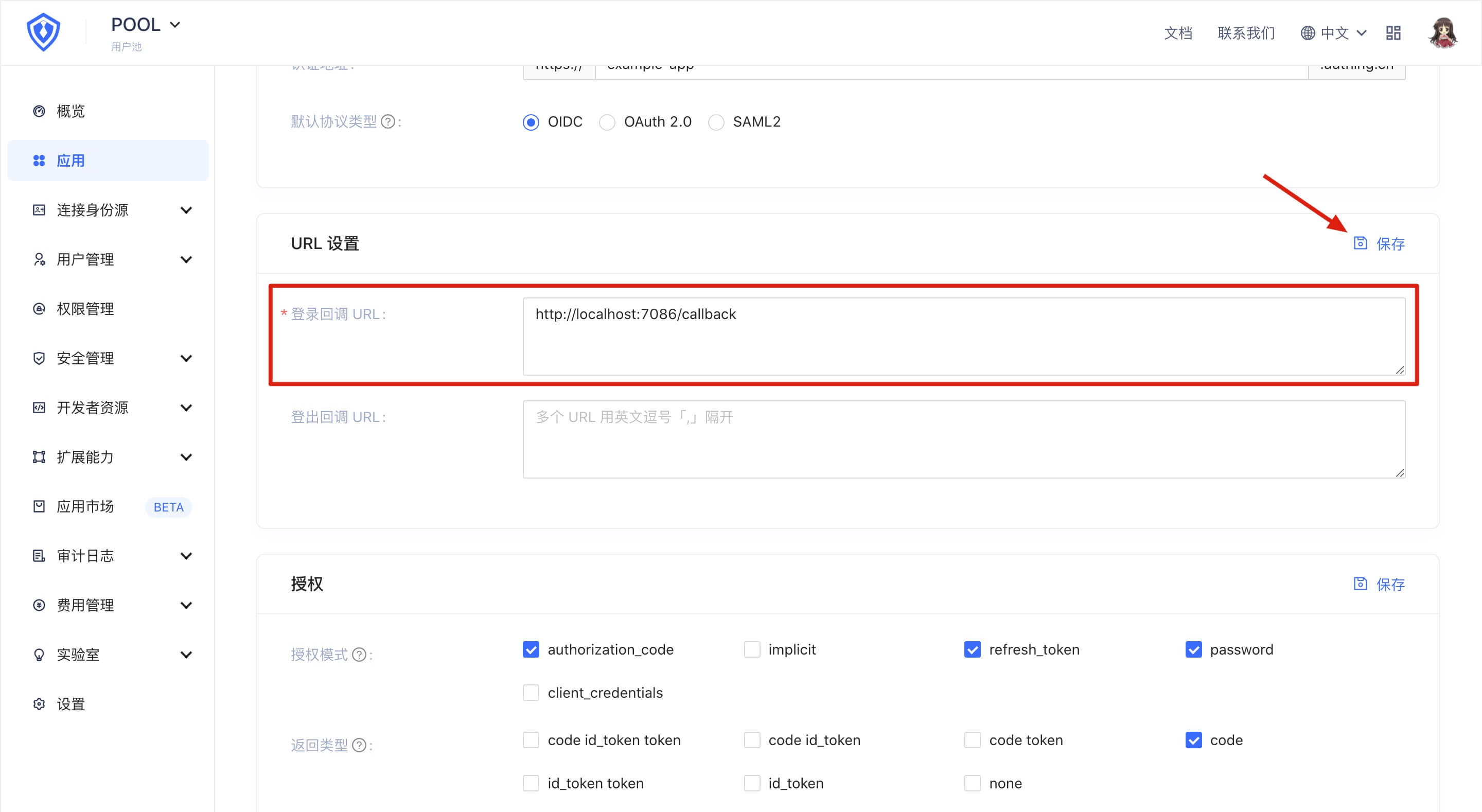

In addition, you need to find the "URL Settings" panel under the "Application Configuration" tab, and configure your own callback address in the "Login Callback URL" box to receive the Ticket parameter sent by GenAuth. If you don't know what this is, you can continue to read it and come back to configure this item later.

After the configuration is completed, don't forget to click the "Save" button to save your configuration.
