¶ Become a SAML2 Identity Source

This article describes how to enable a SAML2 identity provider in GenAuth to provide identity assertions to other service providers. GenAuth can be integrated with third-party applications through the SAML2 protocol. You can learn more about the SAML2 protocol here.

¶ Create an application

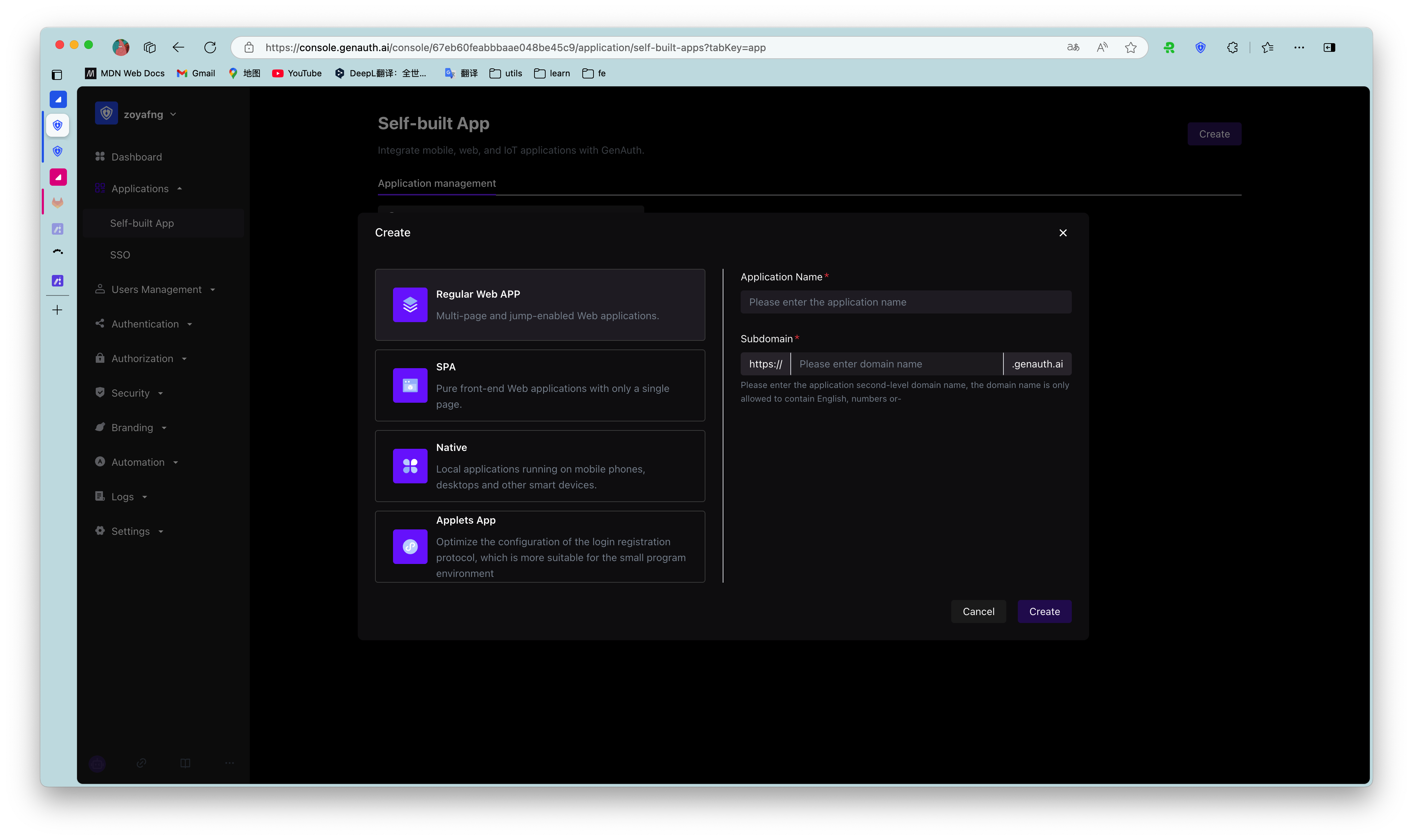

In order to enable your application to have identity authentication capabilities, you need to create an application in GenAuth. It is recommended to fill in the name of your actual application project. Go to Console > Application > Application List and click Create Application:

Fill in your Application Name, for example: Alibaba Cloud Test, and fill in an Authentication Address at will, and finally click the "Create" button:

¶ Configure SAML2 Identity Provider

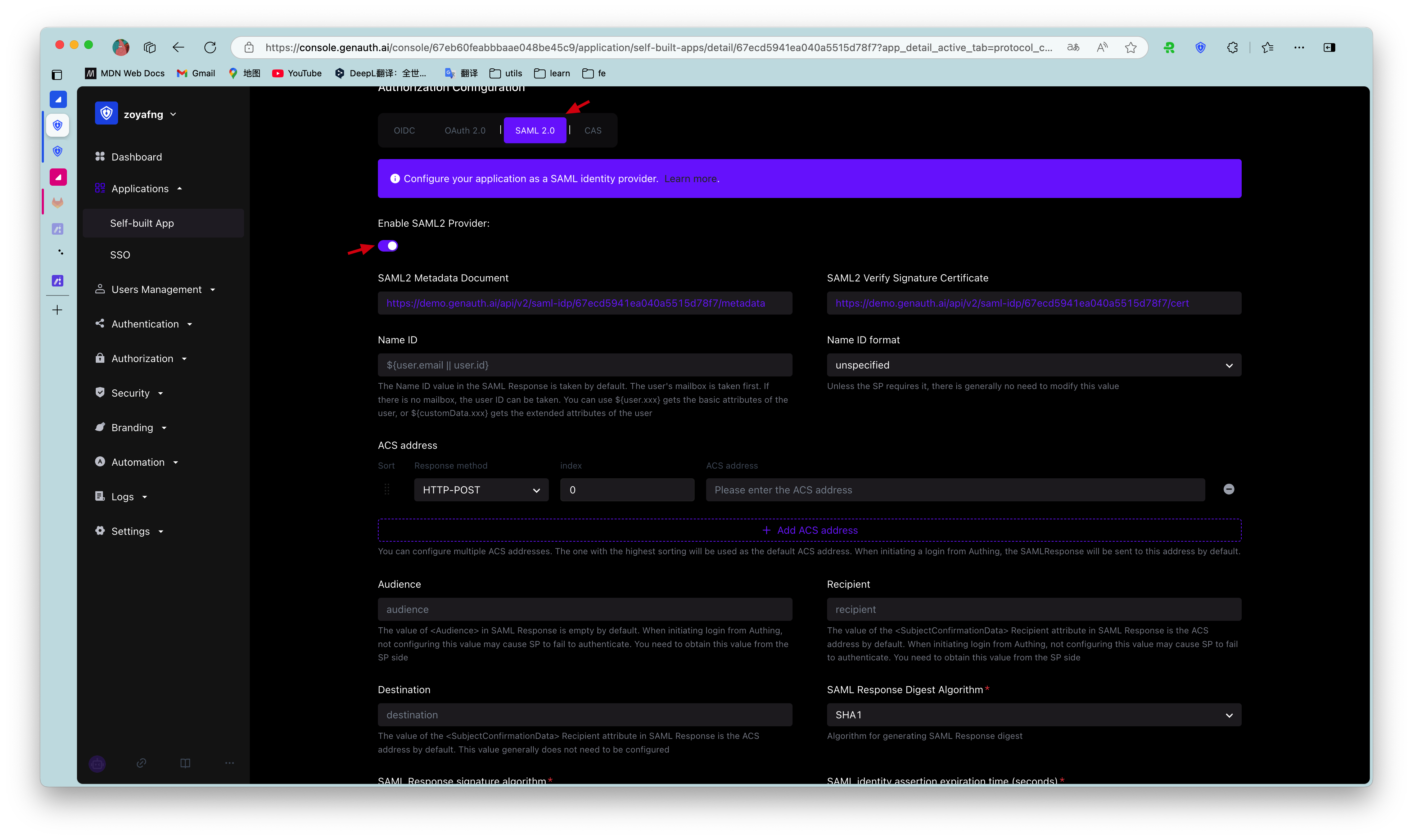

In order to use your organization and users for SAML2 identity authentication, you need to enable the SAML2 identity provider of the application and configure it. Find your application and go to the "Enable Identity Provider" tab.

In the "SAML2 Identity Provider" card, turn on the Enable SAML2 Provider switch and fill in the Default ACS address and Settings information. Then click Save. The specific ACS address will be provided by the SAML SP, and the specific settings need to be configured according to the requirements of the SAML SP.

Default ACS Address: SAML2 Identity Provider will send SAML Response to the consumption address specified in SAML Request by default (return to where it came from, GenAuth will send SAML identity assertion to the address specified by AssertionConsumerServiceURL parameter in SAML Request by default). If the consumption address is not specified in SAML Request, GenAuth will send SAML Response to the address filled in here. You can get this address from SP and fill it in here. If you can't find it at SP, you might as well fill in one at random, but some SPs will not specify the consumption address in SAML Request, in this case you must fill in the correct address here.

Settings: Advanced configuration of SAML2 Identity Provider, you need to fill in a JSON format object, containing the following:

Example:

{
  "audience": null,
  "recipient": "https://signin.aliyun.com/saml/SSO",
  "destination": "https://signin.aliyun.com/saml/SSO",
  "mappings": {
    "email": "Email",
    "username": "UserName"
  },
  "digestAlgorithm": "http://www.w3.org/2000/09/xmldsig#sha1",
  "signatureAlgorithm": "http://www.w3.org/2000/09/xmldsig#rsa-sha1",
  "authnContextClassRef": "urn:oasis:names:tc:SAML:2.0:ac:classes:unspecified",
  "lifetimeInSeconds": 3600,
  "nameIdentifierFormat": "urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified",
  "samlRequestSigningCert": "-----BEGIN CERTIFICATE-----\nMIICyDCCAjGgAwIBAgIBADANBgkqhkiG9w0BAQUFADCBgDELMAkGA1UEBhMCdXMx\nDTALBgNVBAgMBGFzZGYxDTALBgNVBAoMBGFzZGYxGDAWBgNVBAMMD2lkcDMuYXV0\naGluZy5jbjENMAsGA1UEBwwEYXNkZjENMAsGA1UECwwEYXNkZjEbMBkGCSqGSIb3\nDQEJARYMYXNkZkAxMjMuY29tMB4XDTE5MDUyNTA1NTgwMFoXDTIwMDUyNDA1NTgw\nMFowgYAxCzAJBgNVBAYTAnVzMQ0wCwYDVQQIDARhc2RmMQ0wCwYDVQQKDARhc2Rm\nMRgwFgYDVQQDDA9pZHAzLmF1dGhpbmcuY24xDTALBgNVBAcMBGFzZGYxDTALBgNV\nBAsMBGFzZGYxGzAZBgkqhkiG9w0BCQEWDGFzZGZAMTIzLmNvbTCBnzANBgkqhkiG\n9w0BAQEFAAOBjQAwgYkCgYEA2gggFHKUYkoEp83BfGgVjBiev+MIBm+AOuKVqIAX\naJDa1NHL+ApBWsfbKNoPPMy8sZdCBrDm6w5cx9cBjw4uBUap3elxr+MiFoCCc2Eg\nJundFhBVXkU6TafLzfoW4w6/yonmQ798nBKQrTmdc76tpT9xCwU2AmS5ooScQ9Xu\nNn0CAwEAAaNQME4wHQYDVR0OBBYEFMDHVJxYcOlCxnnRi1Lx4tj7gWKNMB8GA1Ud\nIwQYMBaAFMDHVJxYcOlCxnnRi1Lx4tj7gWKNMAwGA1UdEwQFMAMBAf8wDQYJKoZI\nhvcNAQEFBQADgYEAvDodW/ewvCEadY4PCFaBT0ZqoEvrb96hOrbP2hZV4lkCMbLq\noPWASgGTNr9TPnxGCvP9xOv77wzgLs7EAOI+ea1D+NIjUuKnjCLLBv034vMp8bRI\n/Ea9AsGqVCr8tK/3dPoJMxHIjs2cpqNdDcalCZkwBZ1Z0c0YtKIVDFnym5U=\n-----END CERTIFICATE-----",
  "emailDomainSubstitution": "authing.onaliyun.com"
}

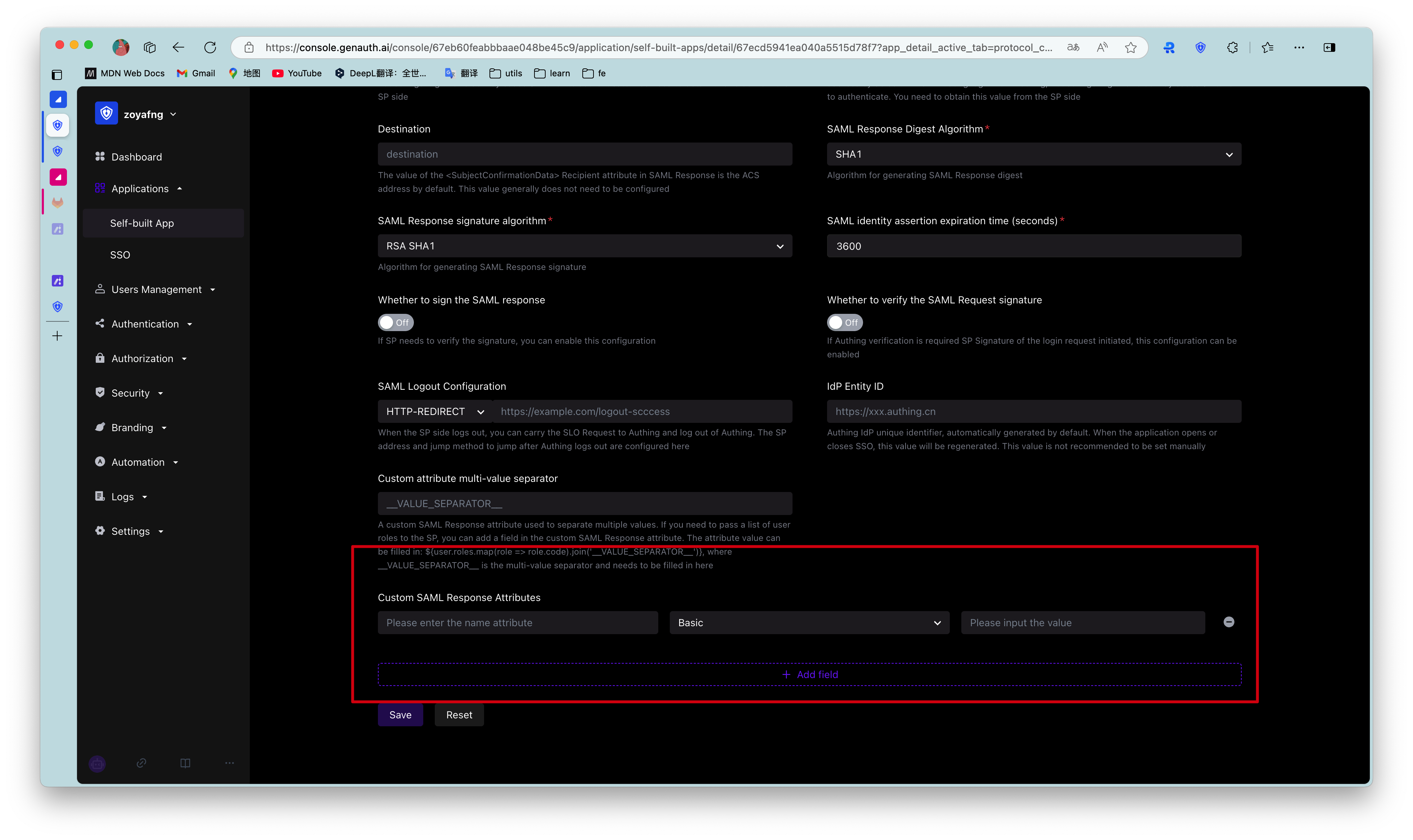

Custom SAML Response Attributes: You can add some custom attributes to the SAML identity assertion, and the newly added attributes will appear in the Attributes of the SAML identity assertion.

Example:

The above configuration will add the following attributes to the SAML identity assertion:

<saml:Attribute Name="https://cloud.tencent.com/SAML/Attributes/Role" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
  <saml:AttributeValue
    xmlns:xs="http://www.w3.org/2001/XMLSchema"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">qcs::cam::uin/2165337796:roleName/authing,qcs::cam::uin/2165337796:saml-provider/authing
  </saml:AttributeValue>
</saml:Attribute>
<saml:Attribute Name="https://cloud.tencent.com/SAML/Attributes/RoleSessionName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
  <saml:AttributeValue
    xmlns:xs="http://www.w3.org/2001/XMLSchema"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">Test
  </saml:AttributeValue>
</saml:Attribute>

你还可以从 GenAuth 的用户信息上动态读取字段，在一行中最右侧的文本框中输入：My email is ${user.email} and my gender is ${user.gender}。

This content will add the following attributes to the SAML identity assertion:

<saml:Attribute Name="CustomName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
  <saml:AttributeValue
    xmlns:xs="http://www.w3.org/2001/XMLSchema"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">My email is yezuwei@genauth.ai and my gender is M
  </saml:AttributeValue>
</saml:Attribute>

¶ Integration with Applications

GenAuth has been integrated with Alibaba Cloud, Tencent Cloud, Huawei Cloud, AWS, and Kibana (AWS) for SAML2. Please refer to the corresponding configuration documents for detailed steps.

¶ Log in to the Alibaba Cloud Console (China Region)

Please refer to the Access Document.

¶ Log in to the Alibaba Cloud Console (International Region)

Please refer to the Access Document.

¶ Log in to the Tencent Cloud Console

Please refer to the Access Document.

¶ Log in to the AWS Console (China Region)

Please refer to the Access Document.

¶ Log in to the Huawei Cloud Console (China Region)

Please refer to the Access Document.

¶ Log in to the Kibana Console (AWS China Region)

Please refer to the Access Document.
